光学收发器

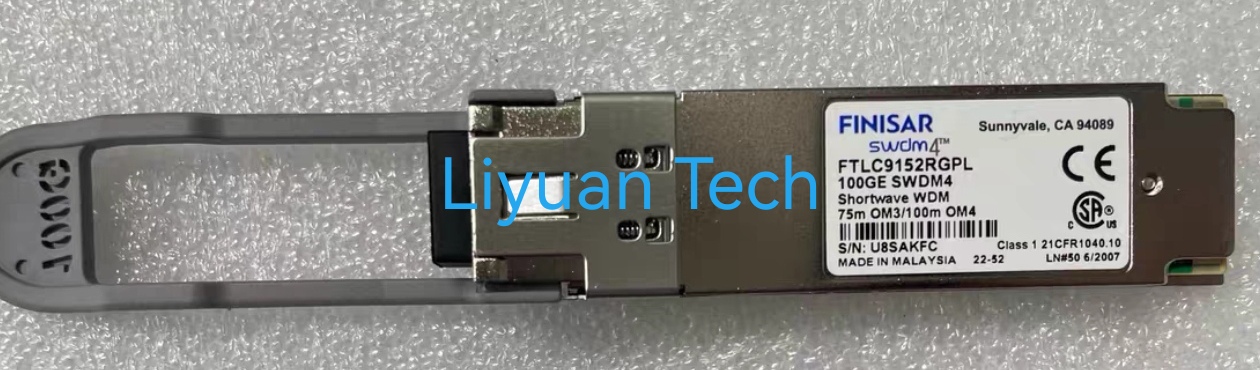

DELL 0X7CCC Q28-100G-SWDM4 FTLC9152RGPL-FC
- 产品描述：DELL 0X7CCC Q28-100G-SWDM4 FTLC9152RGPL-FC_QSFP28 100G 100M 850NM MMF_Liyuan Tech
-
Brand: Dell
Part Numbers: 0X7CCC Q28-100G-SWDM4 FTLC9152RGPL-FC
Data Rate: 100Gbps
Wavelength: 850nm, 880nm, 910nm, 940nm
Mounting Type：Pluggable QSFP28
100G Ethernet over Duplex MMF
Applications: Ethernet
Voltage - Supply： 3.135V ~ 3.465V
Connector Type： LC Duplex
Hot-pluggable QSFP28 form factor
Supports 103.1Gb/s aggregate bit rate
Power dissipation < 3.5W
RoHS-6 compliant
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 75m/100m/150m on OM3/OM4/OM5 Duplex Multimode Fiber (MMF)
4x25Gb/s 850mm VCSEL-based transmitter
4x25G CAUI-4 electrical interface
Duplex LC receptacles
I2C management interface
Country of origin: Malaysia
Dell 0X7CCC Q28-100G-SWDM4 FTLC9152RGPL-FC 100Gb/s Multi-Mode Fibre 850nm 100m Duplex LC Connector QSFP28 Transceiver Module
This Dell 0X7CCC Q28-100G-SWDM4 FTLC9152RGPL-FC 100G QSFP28 transceiver modules are designed for use in 100G Ethernet links over duplex multimode fiber. They are compliant with the QSFP28 MSA and IEEE 802.3bm CAUI-4.
Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA and Finisar Application Note AN-2171. The transceiver is RoHS-6 compliant per Directive 2011/65/EU.
See Finisar Application Note AN-2038 for more details.
Transceiver Products Supplied by Liyuan Tech
Main Brands: Alcatel, Nokia, Finisar, Ciena, Mellanox, Brocade, Infinera, Ericsson, DELL, HPE, Juniper, HUAWEI, ZTE, etc.
Models：1.25G-10G-25G-40G-100G-200G-400G, SFP/SFP+/QSFP+/QSFP28/QSFP56/CFP/CFP2/CFP4/QSFP-DD
In addition to DELL 0X7CCC Q28-100G-SWDM4 FTLC9152RGPL-FC , Liyuan Tech supply a wide range of other Optical transceiver transceivers. If you have any need or interest, please feel free to send inquiry to global@chn-liyuan.com
∷
